MINIWACHS-600

• adaption to compressed air pressure injection or
• adaption to a foot pump
• Both versions with a manually adjustable air pressure gauge.
• Temperature range is 0° C – 85° C
• electronically controlled ±0.2° C
• wax capacity: 0.6 ltrs.
• Safety function against overheating.
• weight: 6 kg
• dimension B x T x H: 130 x 130 x 380 mm
• power supply 230 V, 50/60 Hz
• heating capacity 450 Watt
• temperature range 0 - 85°C

version with compressor adaption Price on request

version with foot-pump Price on request

UNIWACHS-4

• capacity: 3.8 ltr.
• wax chamber heated all around.
• electronic heating regulator with digital read-out at ±0.2° C
• completely with in-take for compressed air
• on demand available for foot pump
• pressure range 1 – 3 bar
• highly versatile
• CE certified

• Weight: 11 kg
• dimension B x T x H: 240 x 240 x 540 mm
• power supply230 V, 50/60 Hz
• heating capacity875 Watt
• temperature range0 - 85°C

  Price on request

Wax Injector for pattern carving wax
MINIWACHS – 600

• small and handy wax injector for pattern carving wax
• adaption to compressed air pressure injection
• manually adjustable air pressure gauge
• on demand available for foot pump
• pressure range 1 – 3 bar
• temperature range is 0° C – 140° C
• electronically controlled ±0.2° C
• wax capacity: 0.6 ltr.
• safety function against overheating

• Weight: 6 kg
• dimension B x T x H: 130 x 130 x 440 mm
• power supply230 V, 50/60 Hz
• heating capacity450 Watt
• temperature range0 - 140°C

Price on request

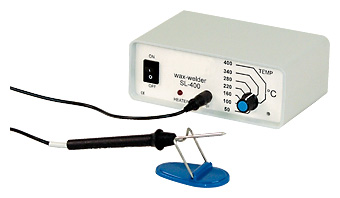

 WAXWELDER SL - 400

This device has been equipped with an electronic controller to regulate automatically the temperature between 50° C – 400° C, ensuring the right working conditions at all phases no matter what kind of wax is used.

This is also the excellent device for making wax model trees.

Ready to use within only 20 – 30 sec. because of its rapid heating system.

• weight: 1 kg
• dimension W×D×H: 155 × 115 × 60 mm
• power supply: 230 V / 50-60 Hz
• capacity: 30 Watt
• handpiece: 12 V / 6 Watt
• temperature range: 50° C – 400° C ± 5-10 %

   Price net of tax 139,-- Euro

modelling tips, metal, 3 different shapes

shape A		11,50 Euro Price net of tax
shape B		11,50 Euro Price net of tax
shape D		9,50 Euro Price net of tax
